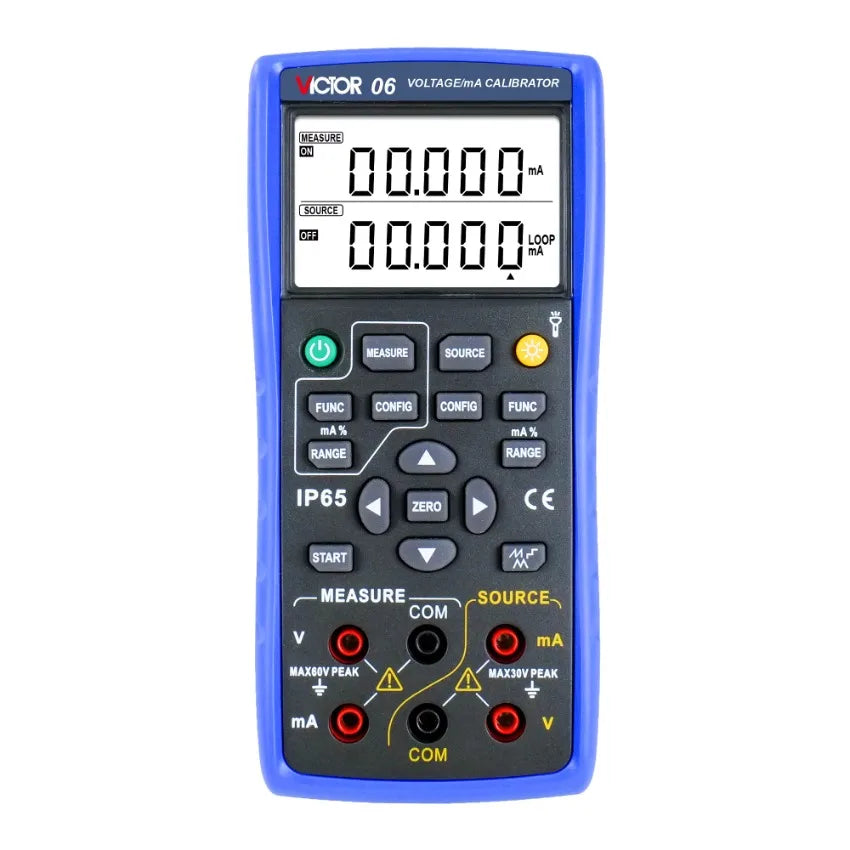

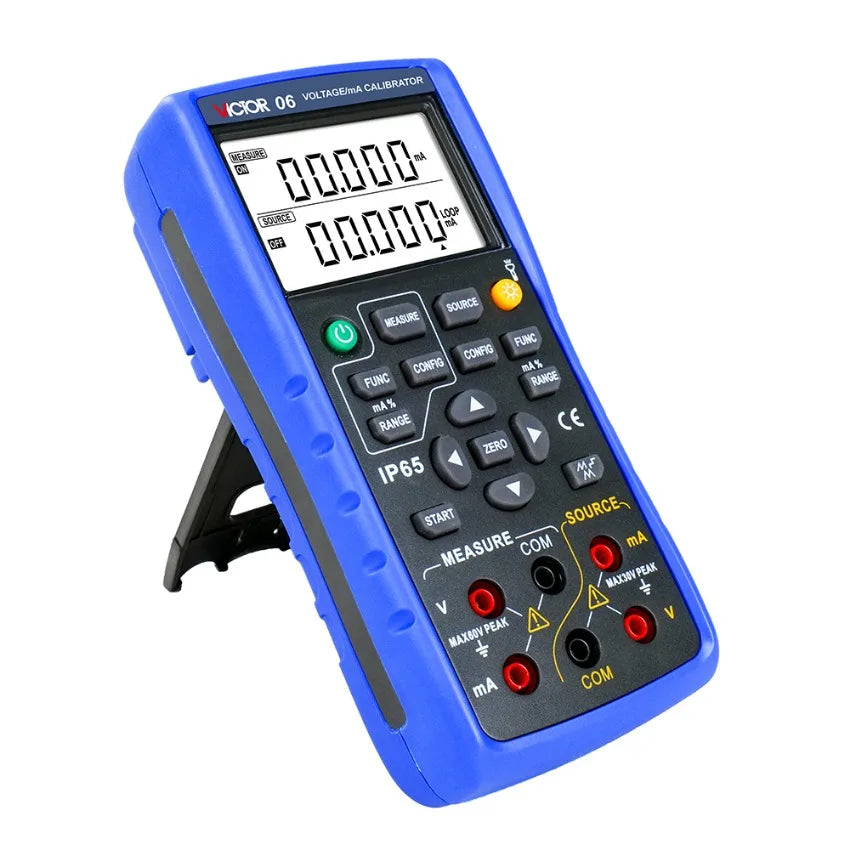

VICTOR 06 Voltage/mA CALIBRATOR High definition large screen displayed as 5 digits HIGH-PRECISION DIGITAL MEASUREMENT LS ytdi
$220.00 USD
Shipping calculated at checkout.

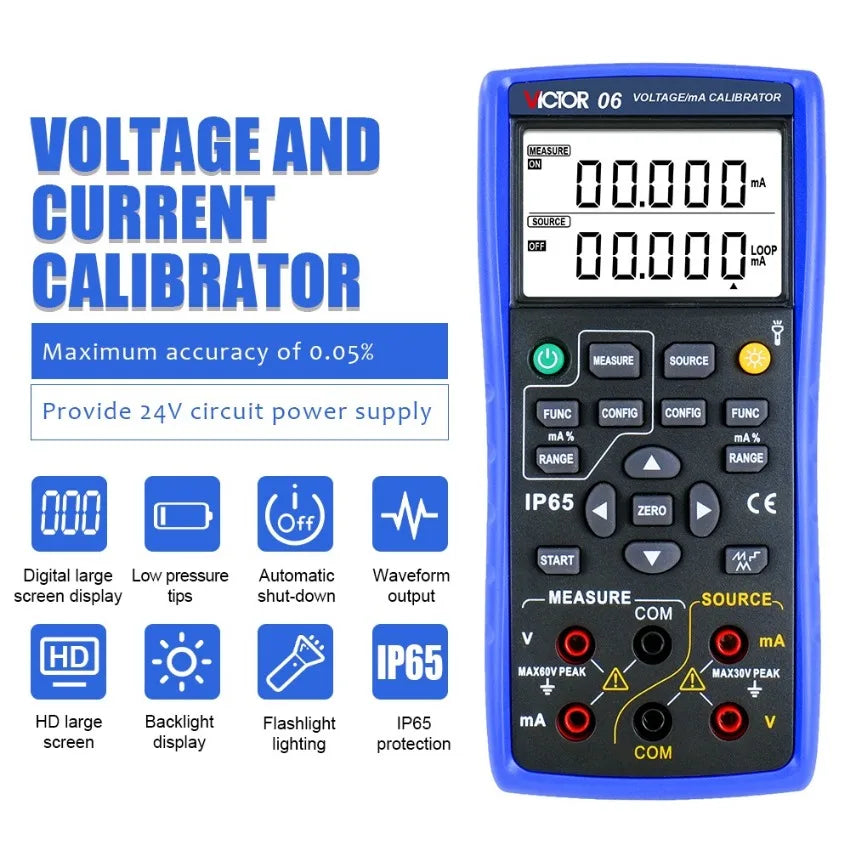

VICTOR 06 Maximum accuracy of 0.05% Provide 24V circuit power supply VOLTAGE AND CURRENT CALIBRATOR
1. lnput measurement
Function: DC voltage, DC current
Measurement accuracy of 0.05%, measurement display of 5 digits
Measurement rate:2-3 times/second
Loop detection function: internal 24V circuit power supply and simultaneous measurement of current
MA has a percentage display mode
Function: DC voltage, DC current
Measurement accuracy of 0.05%, measurement display of 5 digits
Measurement rate:2-3 times/second
Loop detection function: internal 24V circuit power supply and simultaneous measurement of current
MA has a percentage display mode
2. Analog output
Function: DC voltage, DC current
Output accuracy of 0.05%, output display of 5 digits
Can manually increase or decrease output settings by position
DCl output includes active output and passive output
MA has a percentage display mode
When outputting DCl, manual stepping and automatic waveform output functions can be provided
3.Internally provide 24V circuit power supply 4.lt can simultaneouslymeasure and outputprocess signals, as well as displayinput measurementvalues and output set values simultaneously
Function: DC voltage, DC current
Output accuracy of 0.05%, output display of 5 digits
Can manually increase or decrease output settings by position
DCl output includes active output and passive output
MA has a percentage display mode
When outputting DCl, manual stepping and automatic waveform output functions can be provided
3.Internally provide 24V circuit power supply 4.lt can simultaneouslymeasure and outputprocess signals, as well as displayinput measurementvalues and output set values simultaneously
Specification
|
Inputmeasurement function
|
|
|
|
|
||||
|
Function
|
Range
|
Measuring range
|
Resolution
|
Accuracy
|
||||
|
DCV
|
100mV
|
-110.000mV~110.000mV
|
0.001mV
|
0.05%+0.03mV
|
||||
|
|
1V
|
-1.1000V~1.1000V
|
0.0001V
|
0.05%+0.03mV
|
||||
|
|
35V
|
-35.000V~35.000V
|
0.001V
|
0.02%+2mV
|
||||
|
DCI
|
30mA
|
-35.000mA~35.000mA
|
0.001mA
|
0.02%+4uA
|
||||
|
Loop power supply
|
24 V
|
|
|
10%
|
||||
|
Analog output function
|
|
|
|
|
||||
|
Function
|
Range
|
Measuring range
|
Resolution
|
Accuracy
|
||||
|
DCV
|
10V
|
-1.000V~11.000V
|
0.001V
|
0.05%+2mV
|
||||
|
DCI
|
20mA
|
0.000mA~22.000mA
|
0.001mA
|
0.05%+4uA
|
||||
|
Loop power supply
|
24V
|
|
|
10%
|
||||
